Standard advantages

HIGH EFFICIENCY ECOLOGICAL COMBUSTION CHAMBER with §15a B-VG and "BlmSchV - Stufe 2" CERTIFICATE.

Thanks to an innovative system made by Pertinger in association with the Vienna Universityof Technology, clean air no longer goes through the ash box but is preheated at high temperatures inside special gaps on the sides of the combustion chamber after which it is let into the chamber from the top. Besides the usual primary combustion this means we can have a secondary combustion which is triggered by the gases produced by the wood. The high temperatures resulting from this generate a pyrolysis that is able to burn wood almost completely with a considerable reduction in consumption, while the precombustion of the gases ensures cleaner combustion. The total exploitation of the wood reduces the deposit of ash which, with the air let in from the top, is nearly all collected in the ash-box without it going into the environment. The emission values are already in line with the new and more restrictive standards that will be going into force in 2015.

EXTERNAL AIR INTAKE

Today, to waste less energy, houses are built with increasingly efficient insulation systems which prevent the cold outdoor air getting inside. All stoves need a good supply of air to work well. Pertinger stoves have an air intake to connect directly to outdoors to guarantee better performance. So there is no need to open doors or windows any more. This system is essential for buildings declared Climate Houses or Passive Houses.

REAR SMOKE PASS

Unlike traditional wood stoves where the smoke pass only heats the area around the stove, the Pertinger stoves also have a smoke pass at the back. This guarantees a more even cooking temperature which is the secret behind the success of your food and also offers an exceptional heating capacity of more than 80% in stoves with oven and at least 75% in stoves without an oven. The complete cladding of the flue in refractory bricks also accumulates and conserves the heat longer.

ADJUSTABLE MULTIPLE SMOKE OUTLET

The capacity to adapt to your flue is truly incredible. Thanks to the smoke pass at the back of the stove surface and a special patented multi-position coupling, there are five* different adjustable* coupling points** that are 4 cm on the horizontal and 2 cm on the vertical.* eight coupling points in the 50 / 60 / 60BU Ökoalpin** the side coupling is only vertical

AIR SYSTEM

The new demands in home furnishing see more and more requests to have the stove set between units. Air System cools the sides and is IMQ certified IMQ (prot. PO-09-041) which, thanks to the natural circulation of air makes it possible to fit the stove in safely at a minimum distance from flammable surfaces. As this system does not entail the use of fans it consumes no electricity and there is no annoying noise or flying dust.

ADJUSTABLE BASE

The stove can be adjusted so it is perfectly level with the adjacent units thanks to a special patented telescopic base that allows it to be adjusted from 85 to 91 cm in height.

Ökoalpin 100

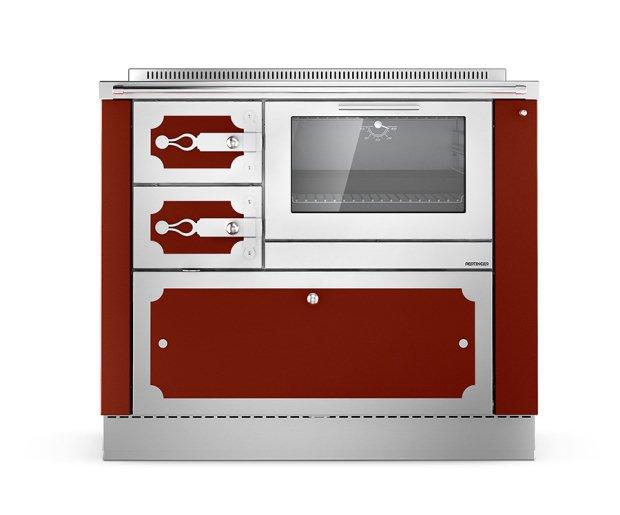

/files/cache/d/4/620x515_oko100-porta-st4-new.jpg520

ÖKOALPIN 100 DEKOR versione ST04 RAL

Measurements (W x D x H in cm): 100 x 60 x 85-91
Nominal heating power (in kW): 8,5
Oven measurements (W x D x H in cm): 44.5 x 42 x 26.5
Heating capacity 80% - *External air intake Ø 8 cm

cucina a legna

Combustion product diversion valve

Optional system that redirects the fumes from the combustion chamber to another stove or to a radiant wall

AIR SYSTEM

Certified system for fitting the stove between cabinets with only a 3 mm gap

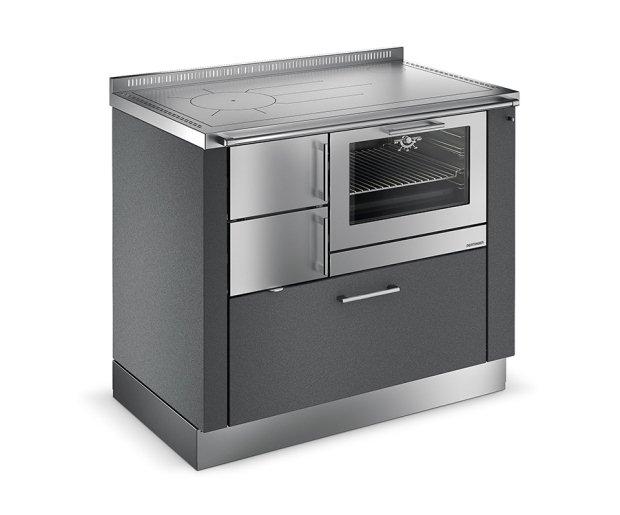

/files/cache/d/5/620x515_oko100_porta_st11.jpg520

ÖKOALPIN100 TREND Black silver F1 version

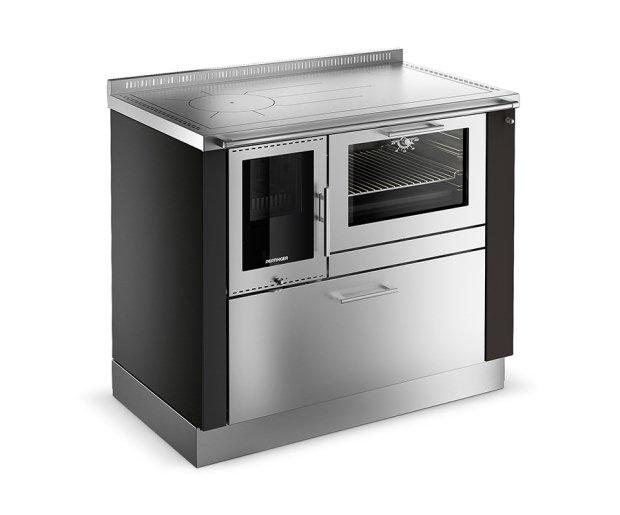

/files/cache/4/6/620x515_oko100_porta_vetro.jpg520

ÖKOALPIN 100 PANORAMA F1 Black / Inox version
